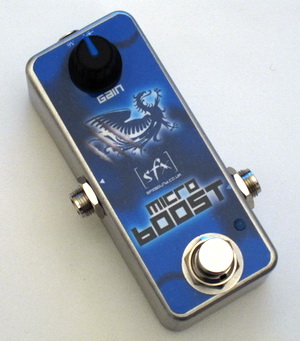

[sfx] micro-Boost

Micro-Booster is a linear booster that offers unparalleld tone clarity and signal performance. Although it is powered at 9V, internaly it operates at more than 30 volts (rail-to-rail). Even under the most demanding signal conditions and gains, it preserves complete signal clarity.

Thanks to its specifications, Micro-Booster is suitable for a vast range of applications: guitar, bass, keyboards, line and instrument levels. It can directly drive power amplifiers preserving the signal integrity even when long cables are used for the connection.

Applications

• Booster. Perfect frequency response for guitar, bass or keyboards. No clipping under the most demanding signals.
• Preamplifier. It can drive directly power amps or audio cards.
• Buffer. High input impedance for demanding pickups (e.g. vintage).
• Line driver. Match the signal levels leaving your sound unaltered.

Specifications

• Small footprint
• Hand built using the finest components
• True-bypass
• High input impedance (~2.5MΩ)
• Power supply: direct current (DC), 7-10V, 2.1mm centre negative, regulated. It can be daisy chained.
• Current usage: ~50mA @ 9V

At [sfx] we keep our devices design constantly under review. For this reason, the specifications are indicative and they may vary without notice.
